Fire cannon
Product Introduction

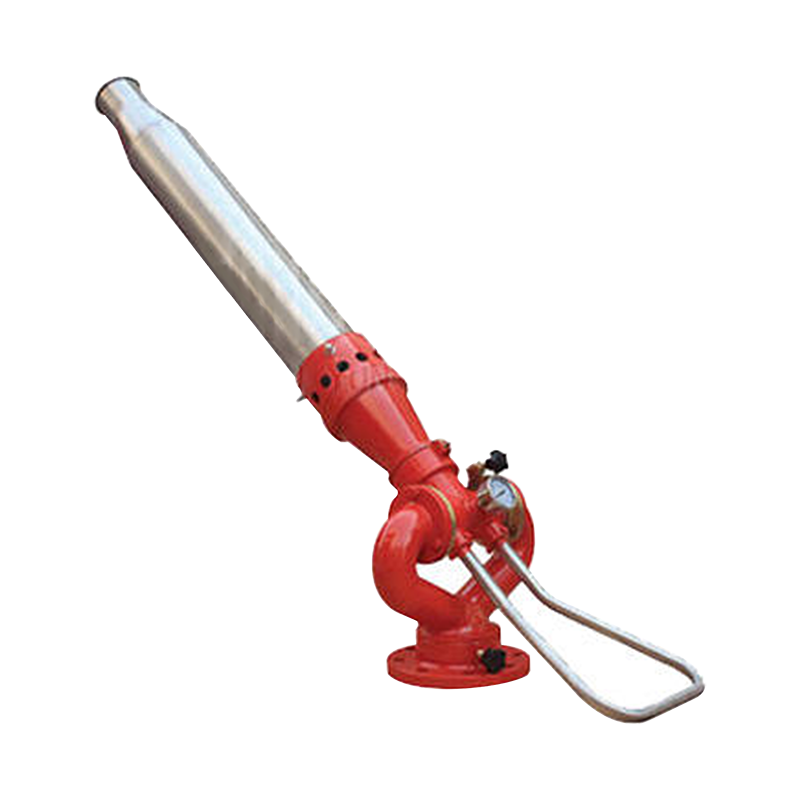

This product is a new type of multi-functional fire extinguishing equipment made of high-pressure resistant and high-strength materials. The stainless steel gun head is designed based on the principle of flow diversion, featuring a large flow rate, concentrated water flow, long range, and multiple functions. It can be used as a multi-functional foam gun. The flow rate can be adjusted within the range of 20-30L/S according to demand. It is flexible and convenient to operate. The gun body can rotate horizontally and vertically. It also has functions such as positioning and locking, which is conducive to the evacuation of operators from the site. It can be equipped on various fire engines, fire boats, fixed fire gun mounts, towers and fire pipelines.
Product features
1.Wireless electric remote control drive
2.Stable performance,flexible operation and easy to maintenance.
3.Low inlet pressure
4.Largeflow and range far
5.Light weight and small volume.
6.It can spray in close distance,remote monitoring.
7.It can spray water column and water mist use different gun head.
Application
1.Used for fire cooling,emergency rescue.
2.Adopted the fire vehicle,firefightingvessel,industrial enterprise,warehouse,oil field and storage tank of fire extinguishing equipment.
Technical parameters
| Model parameters | PS20 | PS30 | PS40 | PS50 | PS60 |
| Flow(L/S) | 20 | 30 | 40 | 50 | 60 |
| Rated working pressure(MPa) | 0.8 |
| Maximum working pressure(MPa) | 1.0 |
| Maximum range(m) | ≥45 | ≥55 | ≥60 | ≥65 | ≥70 |
| Horizontal rotation Angle(°) | 0-360 |
| Maximum elevation Angle(°) | 70 |
| Minimum elevation Angle(°) | -70 |
Foam/water dual-purpose gun
| Model parameters | PL24 | PL32 | PL40 | PL48 | PL64 |
| Flow(L/S) | 24 | 32 | 40 | 48 | 64 |
| Rated working pressure(MPa) | 0.8 |
| Maximum working pressure(MPa) | 1.0 |
| Water Maximum range(m) | ≥40 | ≥45 | ≥50 | ≥55 | ≥60 |
| Foam Maximum range(m) | ≥45 | ≥50 | ≥55 | ≥60 | ≥65 |
| Horizontal rotation Angle(°) | 0-360 |
| Maximum elevation Angle(°) | 70 |
| Minimum elevation Angle(°) | -70 |
| Foaming ratio | ≥6 |
| 25%Separation time(min) | ≥2.5 |
FAQ:
Q: Are you a trading company or a manufacturing factory?
A: We are both manufacturers and trading companies. We have our own factory, which has a history of nearly 15 years, and we have provided better services for overseas customers.
Welcome to inquire!
Q: Can you customize the paint color?
A: Sure, we have a variety of spray paint colors to choose from.
Q: How long is the quality guarantee period for your products?
A: We can offer a two-year quality guarantee.
Q: What is your minimum order quantity?
A: Usually, there is no minimum order quantity, but due to the high shipping cost per piece, we recommend ordering more than 20 pieces.
Q: Can you do OEM and build our own brand?
A: Yes, we can offer OEM and ODM services, and you can also build your own brand on the products.
